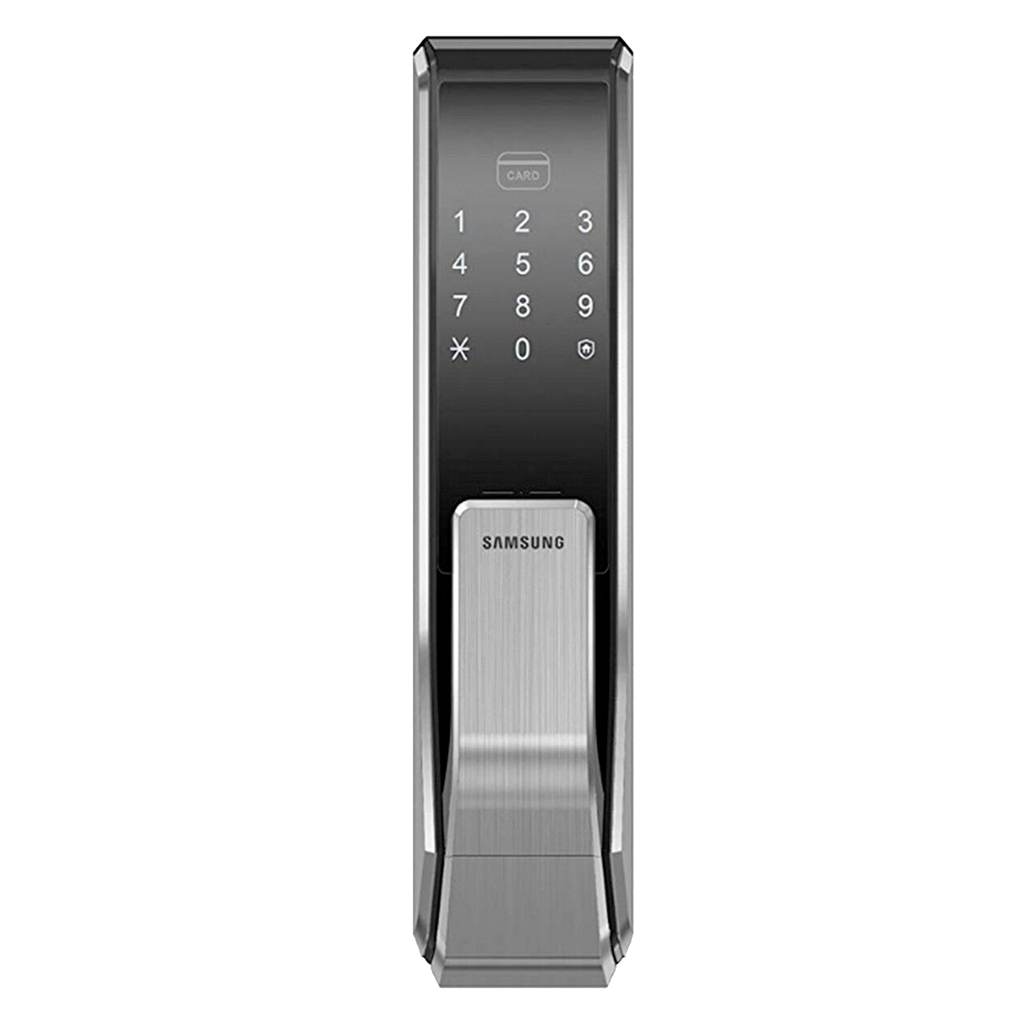

SHS-P717 Features
- Long battery life from 4 x AA batteries - 12 months over 10 entries per day
- Keyless entry for up to 30 users by PIN or KeyTag
- 2 x Samsung KeyTags, 5 Mechanical backup keys, and batteries included
- Innovative & Easy to use Push Pull handle
- Always secure with auto-locking function
A new install can be completed on a 40-60mm thick door with a minimum of a 115mm lock stile. This lock is universally handed for left or right handed installations.
If you or a loved one has ever been locked out of the house, going keyless is a simple decision. No more keys to hide, or get cut and copied.
Giving access to trades, guests, or friends has never been easier. It's 30 user capacity allows you to register multiple users each with their own code or Samsung KeyTag or SmartTag.
Automatic locking allows you to feel secure whenever you leave the house with the door locking behind you whenever you go out. This can also be set to manual if you're in and out of the house frequently.
Our products come complete in the box with all the parts you'll need including 8 AA batteries, 2 Samsung KeyTags to register, and 5 mechanical backup keys.
Installation
Can be installed on left and right handed doors
Door thickness: 40-60mm
Minimum lock stile: 115mm
Backset: 70mm
| Item | Details |
|---|---|
| Access Mode | PIN, RFID Card, Mechanical Key |
| Double Verification | PIN + key tag |
| Max User Memory | 1 Master User (PIN), 30 User Registration, including PIN and key tags |
| Power | AA Alkaline batteries x 8 (DC 6V) |
| Battery Life | Approximately 10 months (Average 10 times per day) |
| Weight | 3.4 kg (including both inner and outer bodies) |
| Product Dimensions | Outer Body : 85(W) X 346.5(H) X 61(D)mm Inner Body : 86(W) X 354.8(H) X 63(D)mm |
| Applicable Door Thickness | Thickness 40-60mm |
| Door to Gate Allowance | 70mm |
| Clearance From Door Edge | 120mm |
| Warranty Info | 2 Year Electrical Warranty; 7 Year Mechanical Warranty |
WI-FI SUPPORTED
APP CONTROL
DOUBLE
AUTHENTICATION
AVAILABLE
RANDOM SECURITY CODE
FEATURE
VOICE GUIDANCE
EASY SET UP
AUTO-LOCKING
LOW BATTERY
ALARM
EMERGENCY
POWER SUPPLY
ADJUSTABLE
VOLUME
EASY
INSTALLATION
Making life easier. The smart, Samsung way.
Keep crime away
Away Security Function
If you go out frequently or leave home for a long time, you can simply push the Home button to activate the Away mode.
After activation, an alarm is set off when the lock is operated from the inside; a sign that a burglar is attempting to make an escape.
Intrusion Alarm
If someone tries to pull the door forcefully or enters incorrect PIN for 5 consecutive times, the door lock sounds a warning and disables key authentication for 3 minutes to help prevent trespassing.
Security Assurance Function
Secure your privacy in-home by preventing your door from unlocking from the outside.
Keep your personal moments safe from unexpected interference by outside visitors.
| Item | Details |
|---|---|
| Access Mode | PIN, RFID Card, Mechanical Key |
| Double Verification | PIN + key tag |
| Power | AA Alkaline batteries x 8 (DC 6V) |
| Max User Memory | 1 Master User (PIN), 30 User Registration, including PIN and key tags |
| Battery Life | Approximately 10 months (Average 10 times per day) |
| Weight | 3.4 kg (including both inner and outer bodies) |
| Product Dimensions | Outer Body : 85(W) X 346.5(H) X 61(D)mm Inner Body : 86(W) X 354.8(H) X 63(D)mm |
| Applicable Door Thickness | 38-60mm |
| Door to Gate Allowance | 80mm |
| Clearance From Door Edge | 120mm |
| Warranty Info | 2 Year Electrical Warranty; 7 Year Mechanical Warranty |
User Friendly
Interface
The globally-renowned door lock design shows the lock status of the door access whenever you go in and out with intuitive LED icon and text, displaying messages such as 'Locked' and 'Unlocked'.
Most Convenient
Push-Pull Handle
Easily open the door by pulling or pushing the handle with your body; this makes it easy to open the door when you have your hands full.
Videos (2)
Samsung Authorised Official Distributor
